Akuvox C315 SIP Indoor Monitor Station Screen

Description

The Akuvox C315 SIP Indoor Monitor provided by Smart Security in Lebanon will give you the best experience to keep your home safe.

Overview:

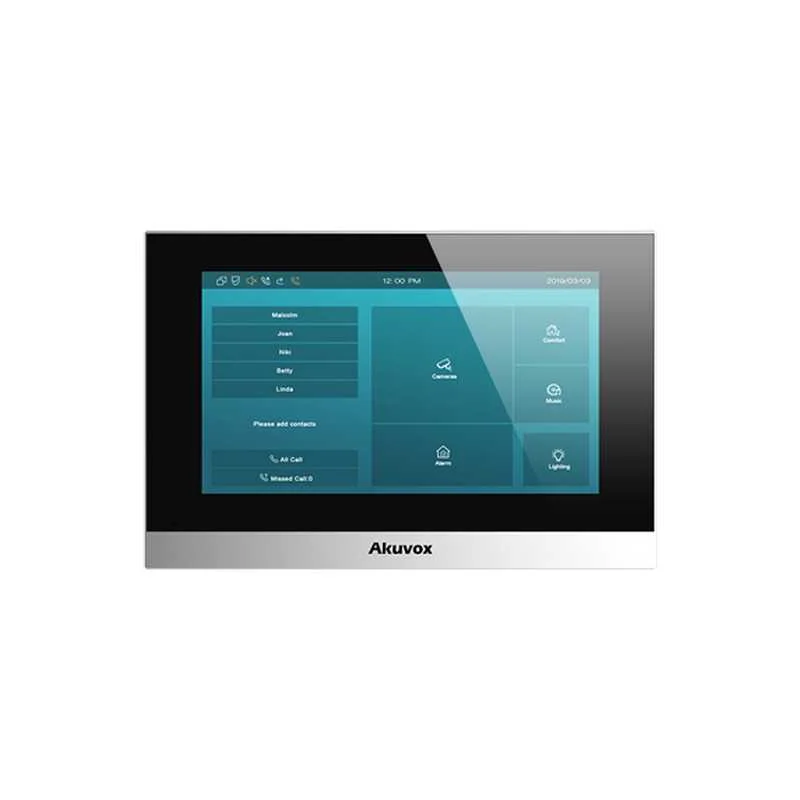

Akuvox C315 is a 7” Android indoor monitor. With a compact body, it fits into limited space and offers a fat stack of features. It is typically used in apartments.

Specification of the Akuvox indoor station maonitor:

• At a Glance

• Ultra-clear, stylish appearance
• Thin profile and small footprint
• 7-inch capacitive touch screen with energy-saving mode to-way audio communication with other units in the network
• Complies with SIP standard for easy integration in every SIP capable PBXes
• Powered by PoE or external source
• Support US or European electrical wall box mounting

• Physical & Power

  Front panel: Plastic

  RAM / ROM: 1GB / 8GB

  Display: 7 Inch TFT LCD

  Screen: 7 Inch capacitive touch screen

  Wi-Fi: IEEE802.11b/g/n, @2.4GHz

  RS485 port: Support

  Relay out: 1

  Bell in: 1

  I/O: 8

  Microphone: -58dB

  Speaker: 4Ω / 2W

  Ethernet ports: 2xRJ45, 10/100Mbps adaptive

  802.3af Power-over-Ethernet

  12V DC connector (if not using PoE)

  Installation: Wall-mounted & Desktop

  Dimension: 200.2×132.2×27.2mm

  Working Humidity: 10~90%

  Working Temperature: -10°C ~ +45°C

  Storage Temperature: -20°C ~ +70°C

• Touch Screen Display

  Display Mode: Normally white, Transmissive

  LCD Size: 7inch (Diagonal)

  Resolution: 1024×600

  Contrast ratio: 800:1

  Luminance: 270 cd/m2

  Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower

  Touch Screen: Projected capacitive

• Audio

  SIP v1 (RFC2543), SIP v2 (RFC3261)

  Narrowband audio codec: G.711a, G.711μ, G.729

  Broadband audio codec: G.722

  DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

  Echo Cancellation

  Voice Activation Detection

  Comfort Noise Generator

  Automatic Gain Control

• Video

  Streaming formats: H.263 & H.264

• Networking

  Protocols supported: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

• Deployment & Maintenance

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Firmware upgrade
• System logs (include door access logs)

Application Scenario

• Villas
• Apartment complexes
• Home automation systems
• Modern interiors

Thus, getting the Akuvox C315 SIP Indoor Monitor will be a good investment for the safety of your home and building. and you will be very happy with your purchase in the long run.

So if you are looking for an Akuvox intercom system in Lebanon, then Call us now at Smart Security and let our professional operators help you with a free consultation.
