Description
Overview:
- 16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design
- Plug and play, no configuration required
Specification:
| Interface | 16× 10/100 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
|---|---|
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| External Power Supply | External Power Adapter(Output: 5.0VDC / 0.6A) |
| Mac Address Table | 2K |
| Dimensions ( W x D x H ) | 7.9 x 5.6 x 1.6 in. (200 x 142 x 40 mm) |
| Max Power Consumption | 3.2W |
| Max Heat Dissipation | 11.0 BTU/h |
| SOFTWARE FEATURES | |
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology, 802.3X Flow Control, |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHs |

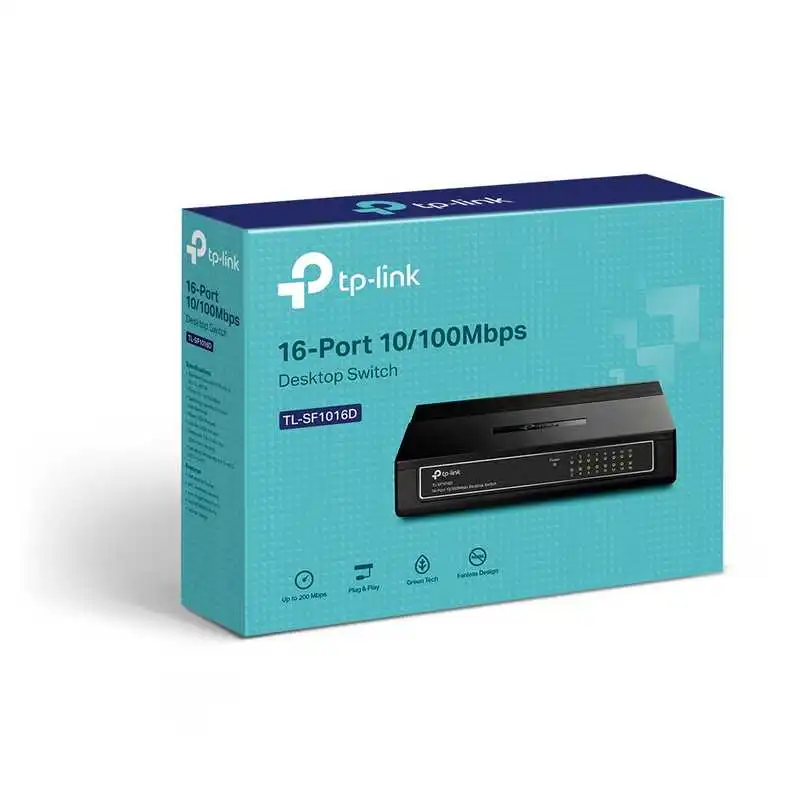

| Package Contents | 16-Port 10/100Mbps Desktop Switch TL-SF1016D Power Adapter User Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
